Overview

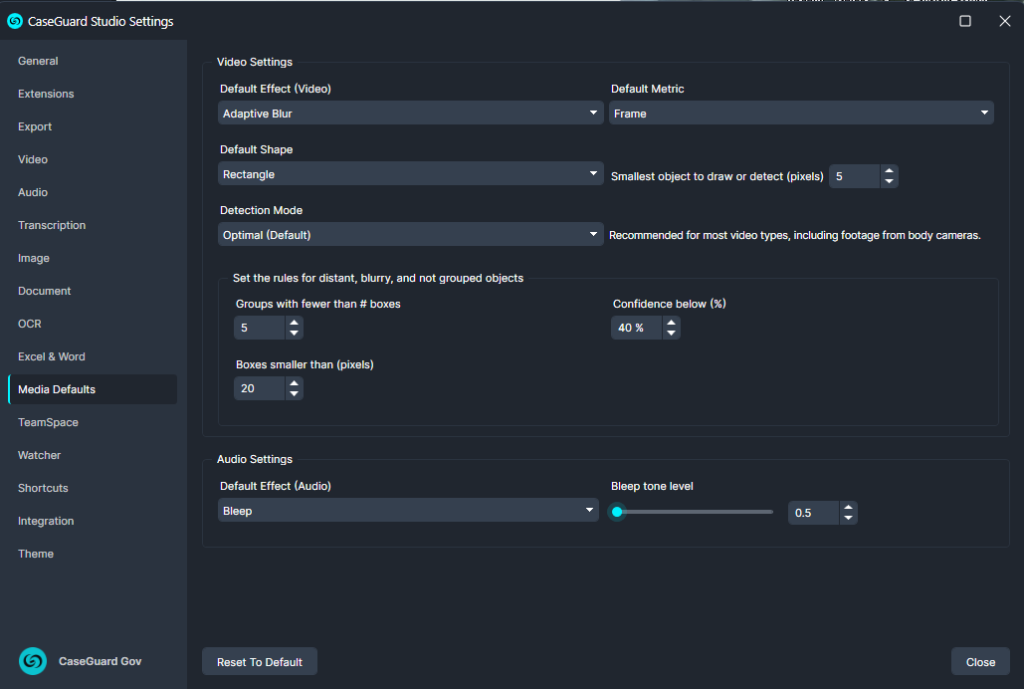

To access CaseGuard Studio’s Media Defaults Settings, select Tools –>Settings. The CaseGuard Studio Settings popup contains 16 tabs, one of which is the “Media Defaults” tab.
When navigating the Media Defaults tab, there are several settings that you can configure to meet the particular needs of you or your agency.
Video Settings
Default Effect
Within this dropdown menu, you can choose one of the software’s 32 different redaction and enhancement effects to serve as the default effect whenever you begin a new redaction project (blur, pixelate, sharpen, contrast, etc..)
Default Metric
From within this drop-down menu, select your preferred metric for video redaction when using the software (Frame Number or Time).
Default Shape
This dropdown menu allows you to select the default shape you would like to document redactions.
Smallest object to draw or detect (Pixels)
Use this option to change the minimum number of pixels that must be used when drawing redaction or enhancement boxes, as well as using the automatic detection feature.
Detection Mode
- Precise – Best for clearly visible objects. May skip blurry, small, or distant ones.
- Optimal(Default) – Recommended for most video types, including footage from body cameras.

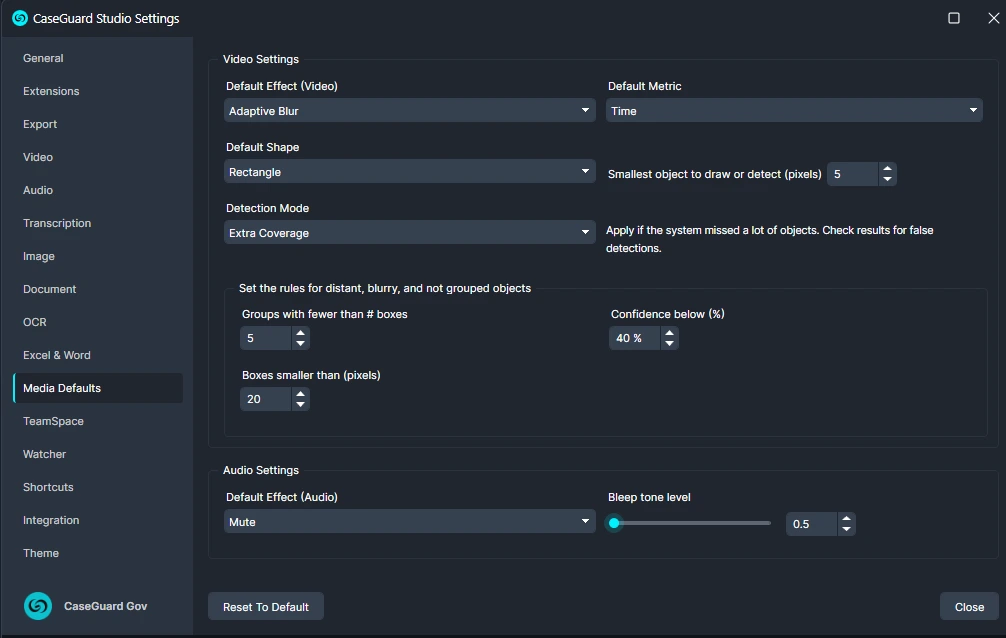

- Extra Coverage – Apply if the system missed a lot of objects. Check results for false detections.
Confidence below (%)
Use this box to set the minimum level of confidence for low-confidence groups when running video detections within the software. For reference, this confidence level refers to the accuracy of the system in determining that an object is a face, vehicle, license plate, etc., on a scale ranging from 0% to 100%.
Boxes smaller than (pixels)
Use this box to determine the minimum number of pixels you’d like the software to categorize as small object groups when running video detection.
Groups with fewer than # boxes
Use this box to set the minimum number of boxes you’d like the software to categorize in the video activity panel.
Audio Settings
Default Effect (Audio):
Select the default audio effect (mute or bleep)
Bleep tone level:
Adjust the bleep tone level with this feature
Conclusion
The Media Defaults tab allows you to configure CaseGuard Studio to your preferred redaction settings, streamlining your workflow and ensuring consistency across video and audio projects.
If you have any questions about this tab, feel free to contact the Support Team at 📧 [email protected]
