Overview
CaseGuard Hub, provides administrators with a centralized way to manage their CaseGuard environment. Through the Hub, organizations can manage TeamSpaces, control user access, and deploy software across multiple machines. One of its most powerful capabilities is Bulk Software Installation, which allows administrators to install CaseGuard Studio on multiple computers across a network from a single interface.
This guide walks through the process of installing CaseGuard Hub and using it to perform a bulk installation of CaseGuard Studio, helping organizations deploy the software efficiently while maintaining consistent configurations across systems.

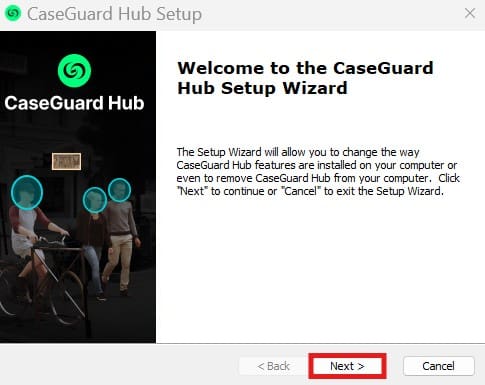

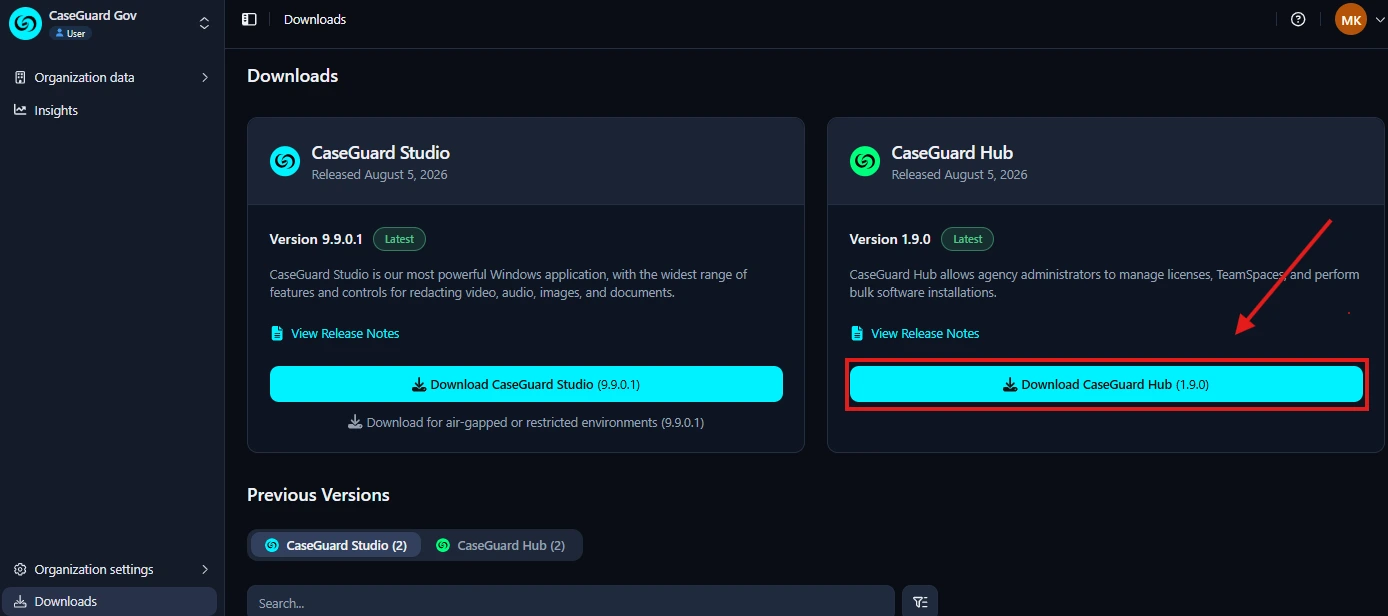

Go ahead and open the exe when the installation is complete. Once you have done so a setup wizard will appear. Click on next on the bottom right to continue with the installation.

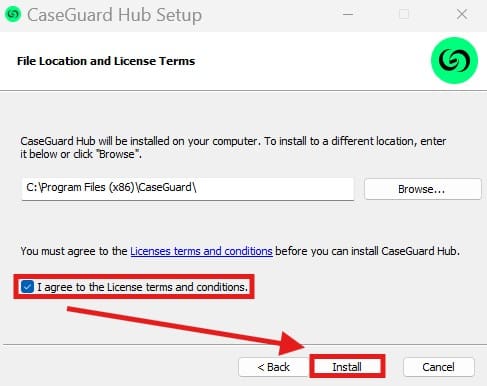

Once you click next, you must agree to the terms and conditions. Then, go ahead and click on Install.

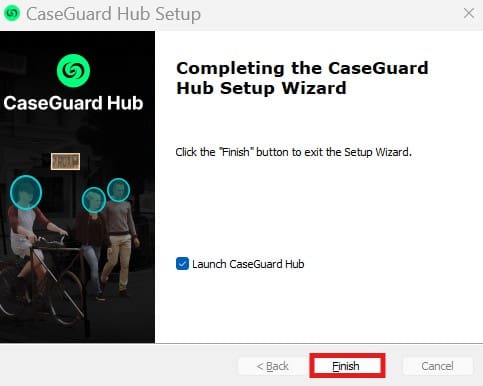

The wizard will begin downloading CaseGuard Hub, once it is done it will give you the prompt below. Click on finish and CaseGuard Hub will open.

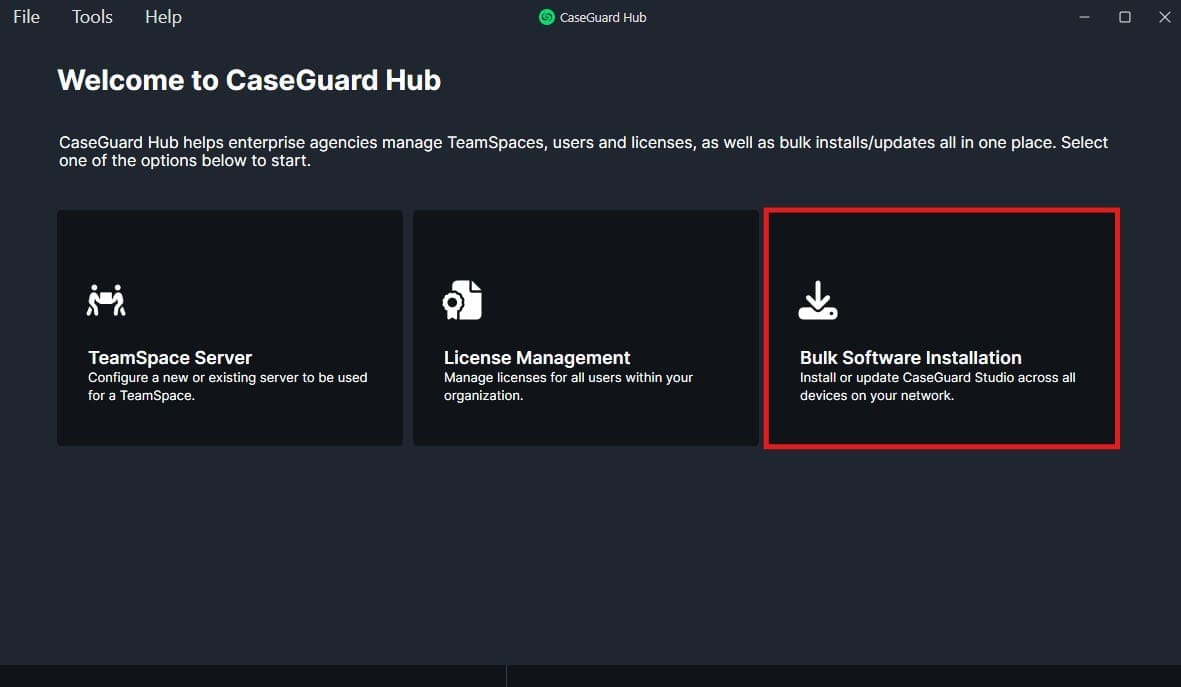

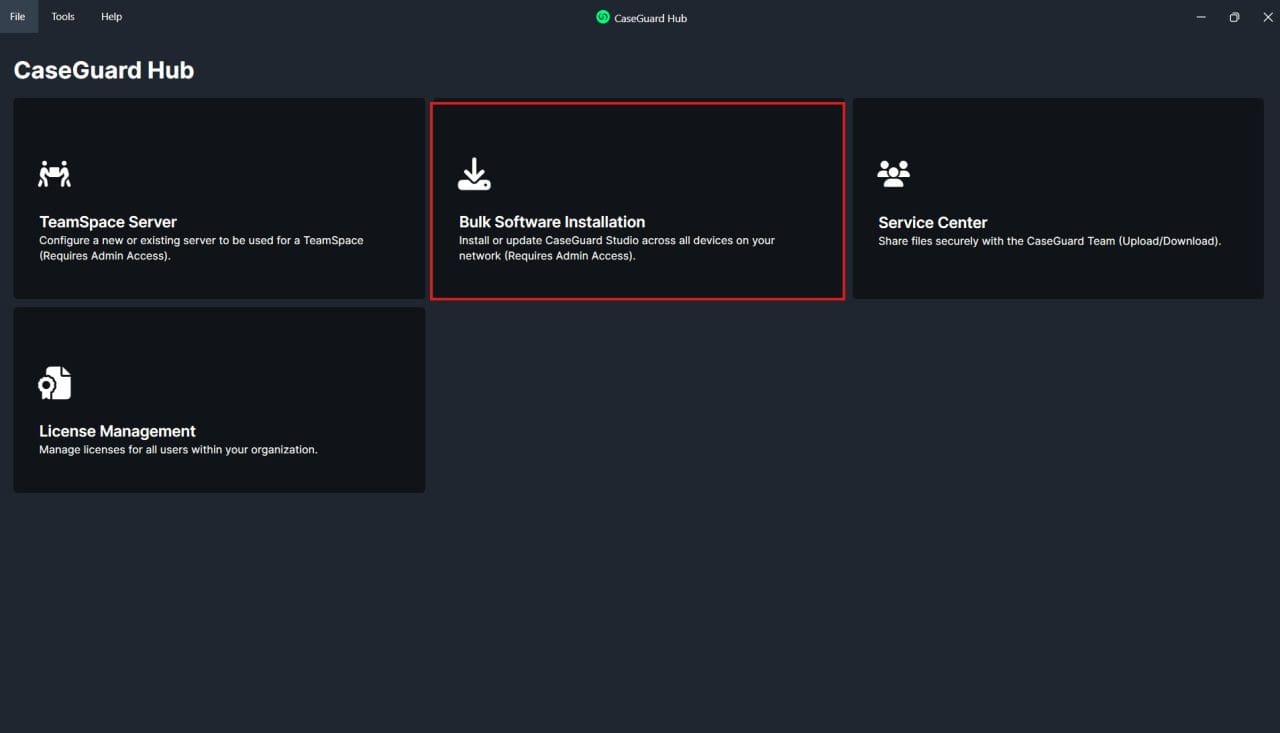

Once the CaseGuard Hub is open you will be greeted with 3 options. TeamSpace Server, License Management, and Bulk Software Installation. Let’s select Bulk Software Installation to begin.

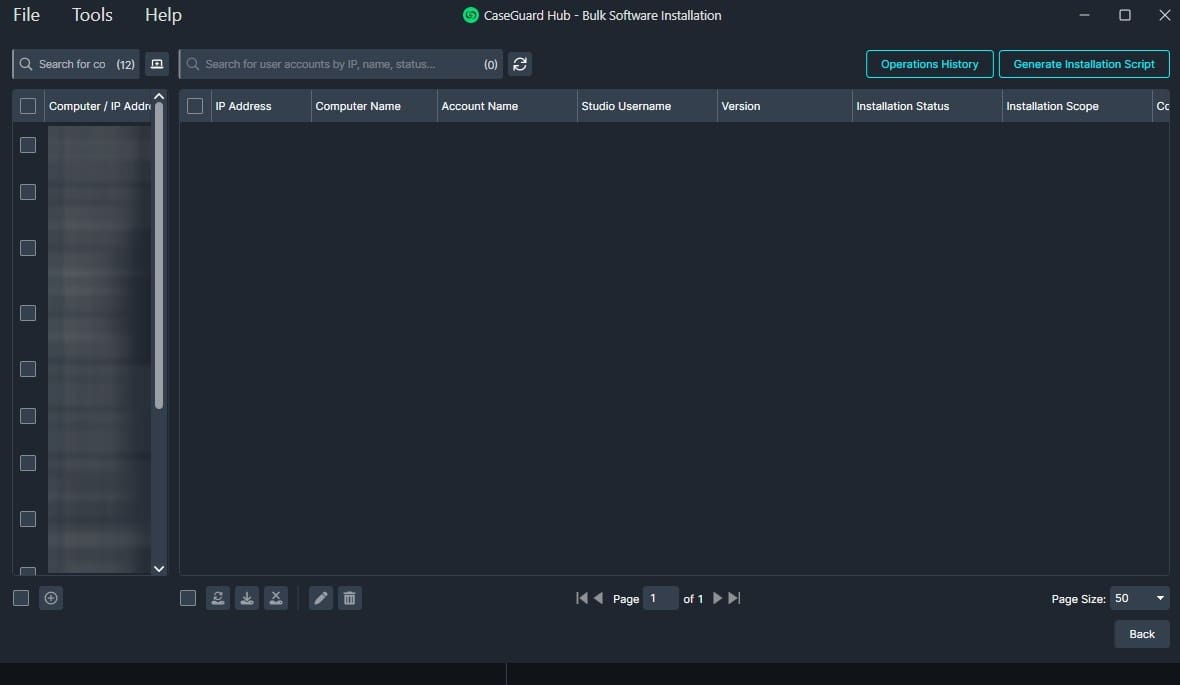

A new window will appear displaying detected computers and their IP addresses. I have redacted my computers and IP addresses for security purposes.

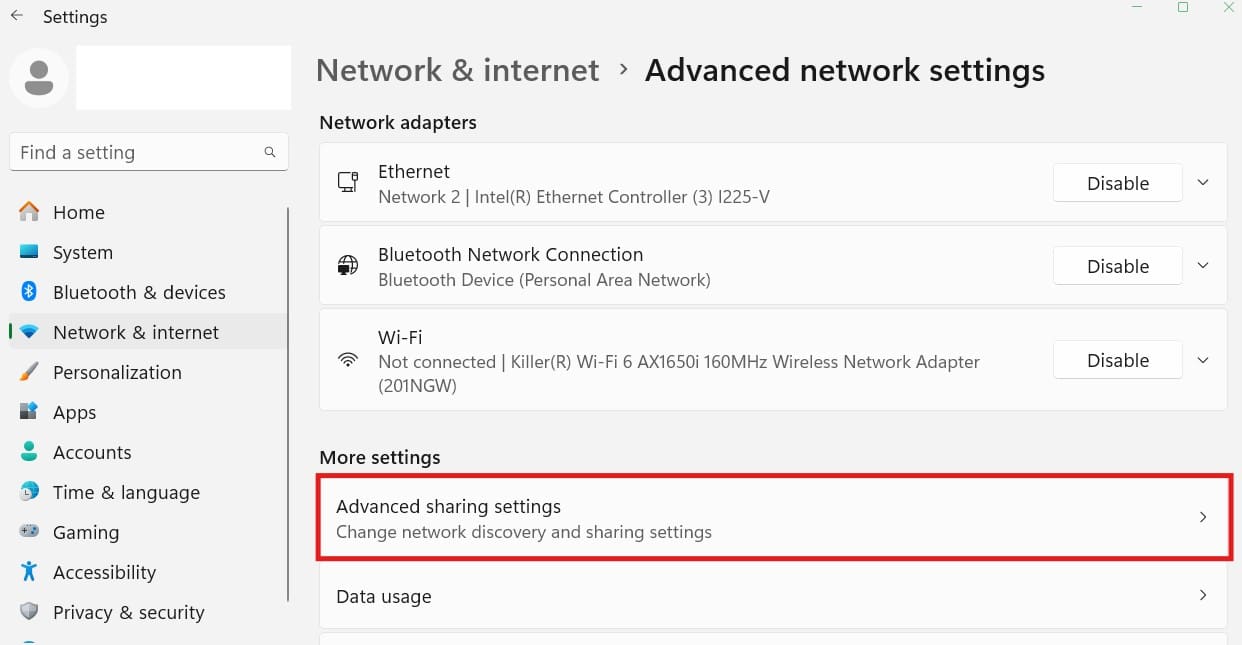

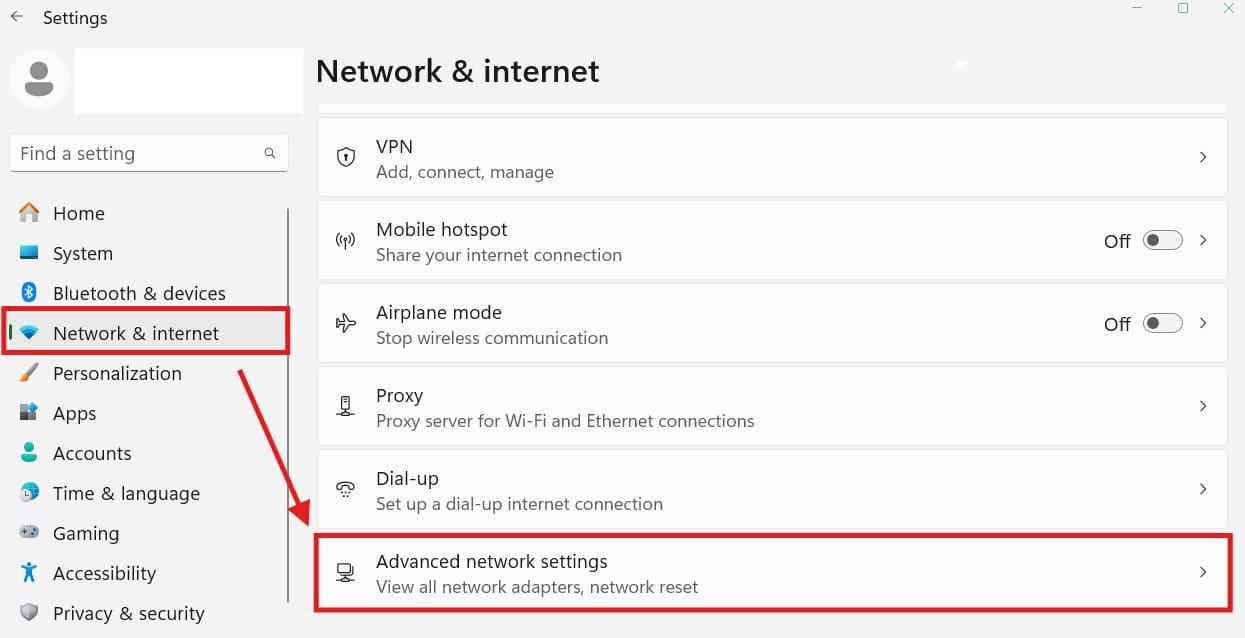

If computers do not appear, ensure Network Discovery is enabled. You can do this by searching “Settings” within your search bar and then clicking on Network & internet. Once you are on that page scroll down until you see “Advanced Network Settings”.
Now that you have “selected advanced network” settings please scroll down until you see “advanced sharing settings”

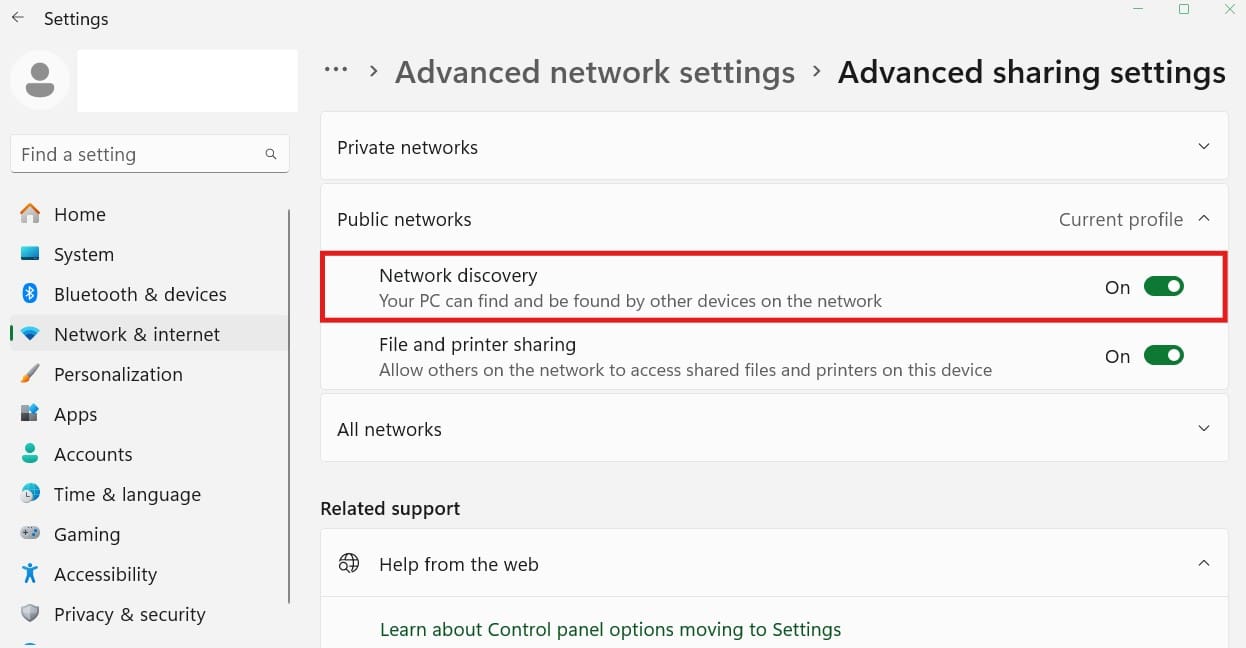

Once you have selected advanced sharing settings you will be able to find the “Network Discovery” option at the top. Be sure that this option is turned on and you will be able to find other devices through the hub.

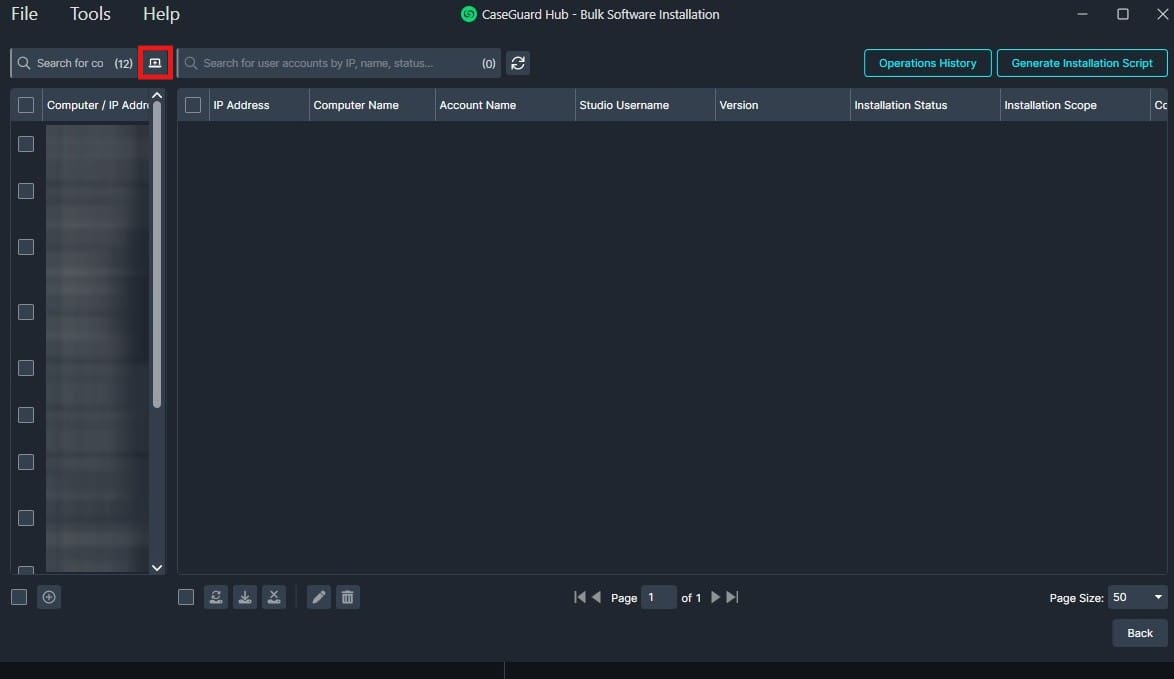

To manually add a computer, click the Add Computer button on the top left.

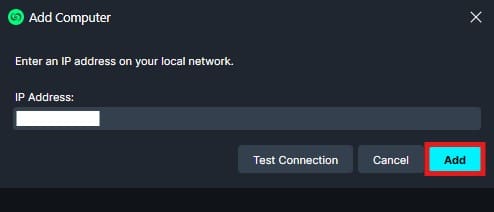

Enter the IP address, and select Test Connection, then Add.

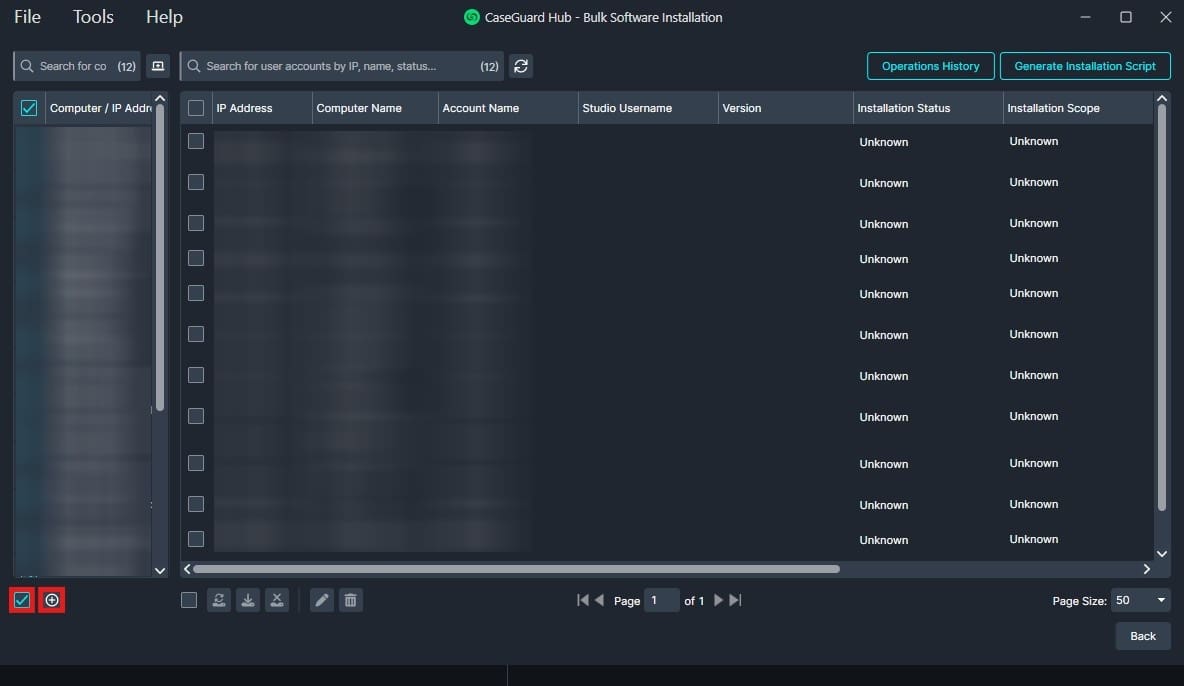

Now that you have learned how to add computers to your list you should have a list of computers on your left-hand side. Click on the check box on the bottom left then click on the + button next to the check box.

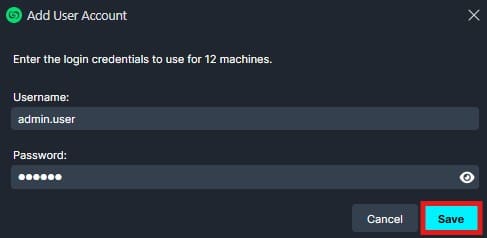

To perform a bulk installation you will need to log in with your CaseGuard credentials to make any changes. This login must be an administrative account for you to do a bulk installation.

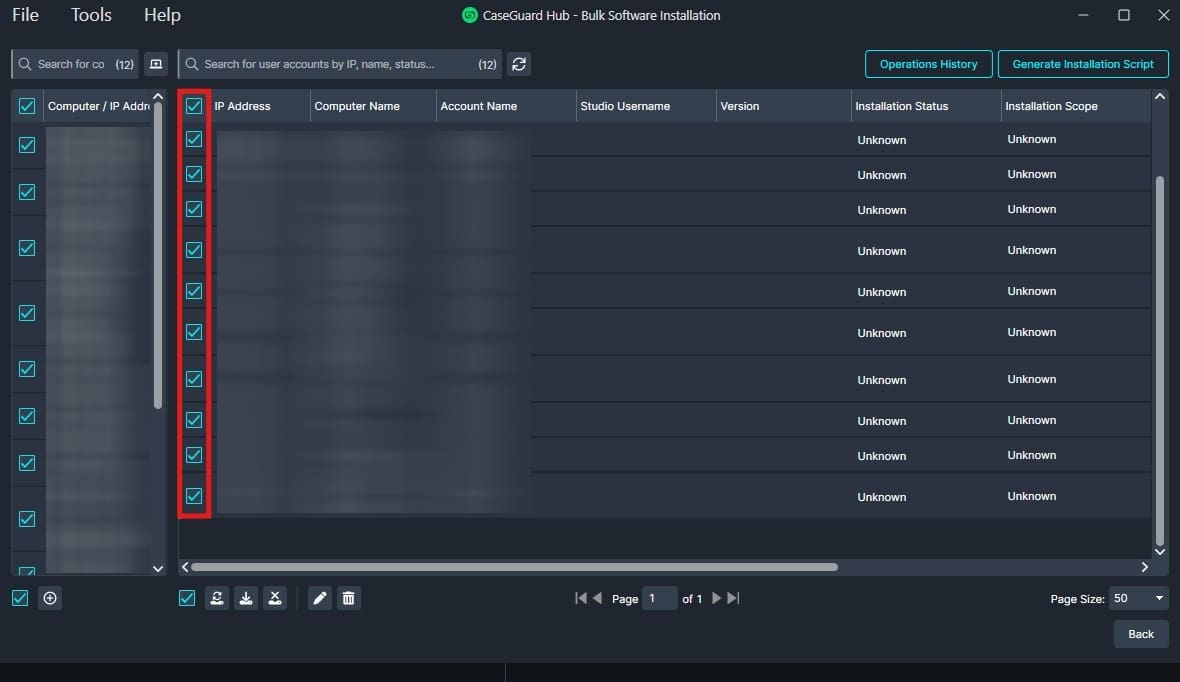

Now that you have logged in with your admin credentials we can select all machines at the top left or select them individually with the check box to each machine. Select the machines you would like to perform these operations on.
Now, at the bottom toolbar, we can select the bulk installation option listed below.

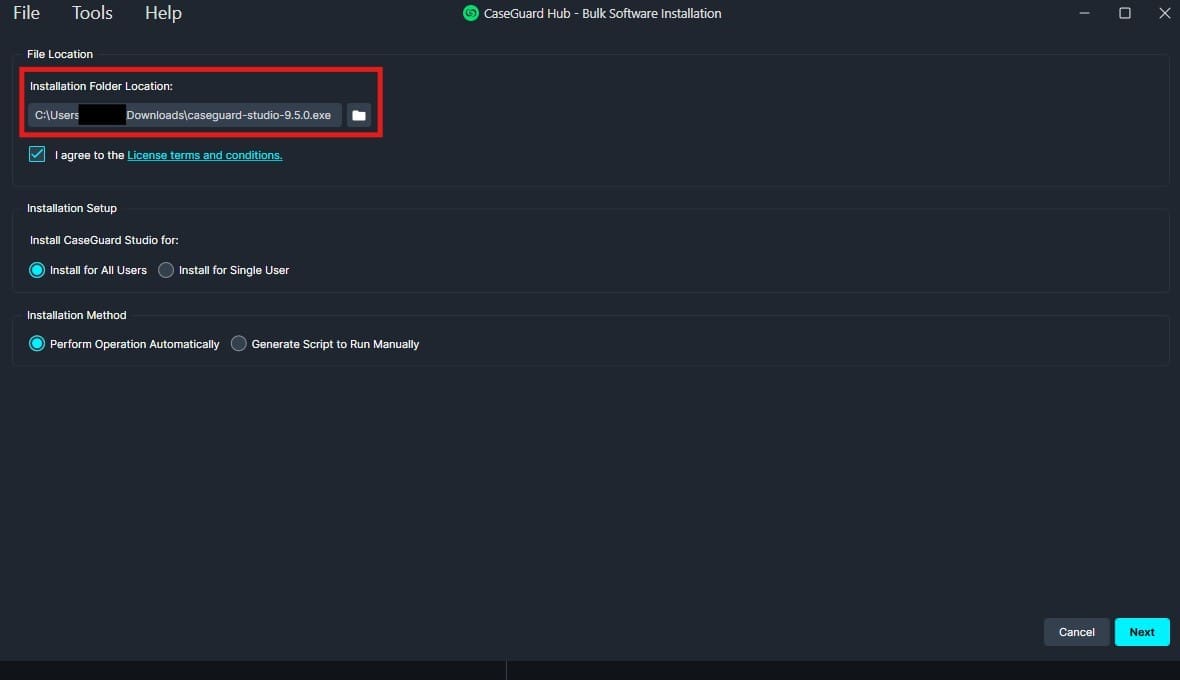

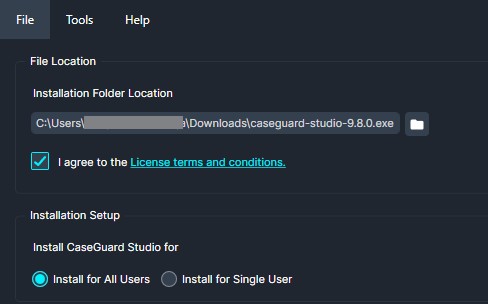

Once you click on the bulk installation button a new window will appear. At the top, you will need to locate the installation exe for CaseGuard Studio. Usually, this can be found in your downloads folder. Once you have agreed to the terms.
- You will have the option to install CaseGuard for all users or for a single user.
- For the installation method, you can choose to perform the operation automatically or generate a script to run manually.
Once you have those settings configured go ahead and click the next button on the bottom right to proceed.

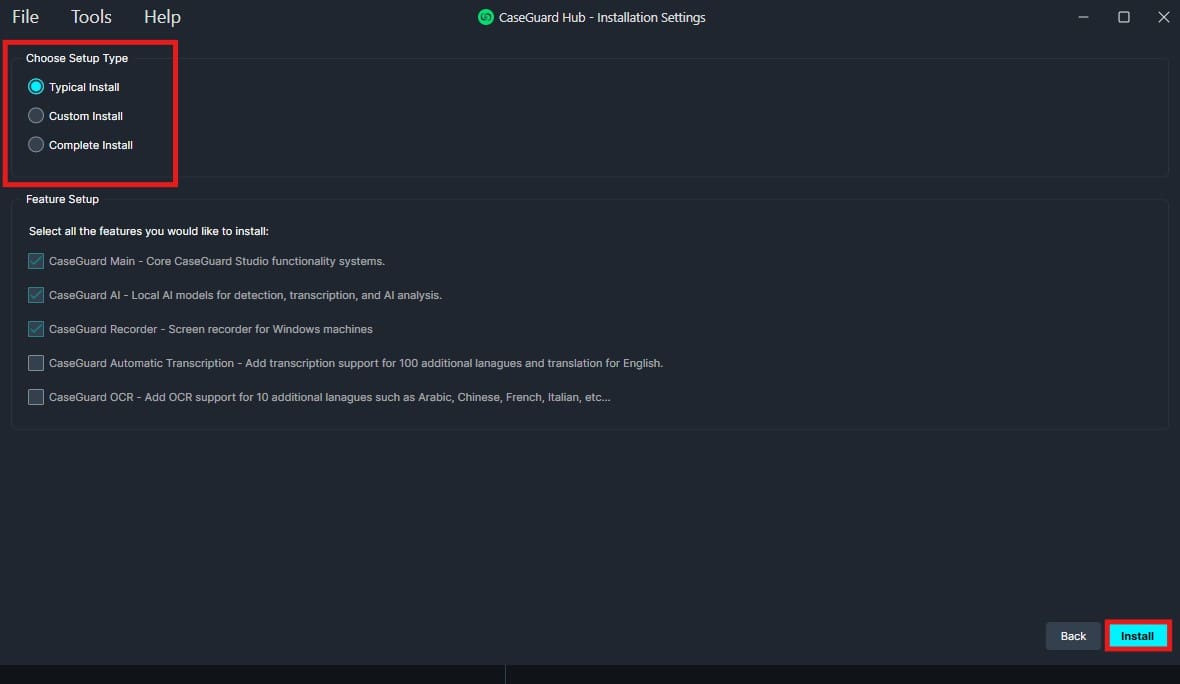

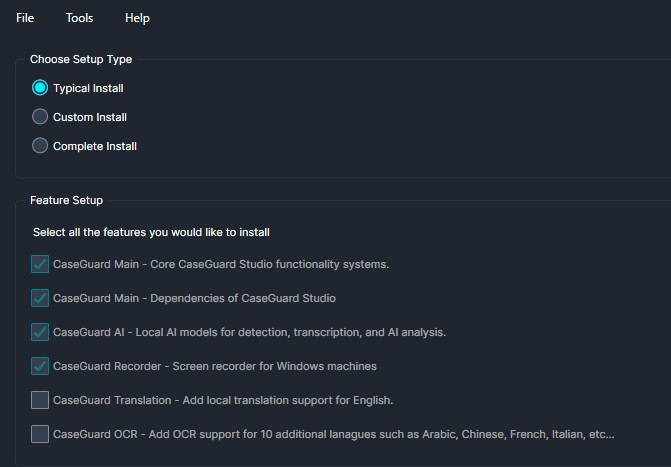

The next window will allow you to select the setup type. The most popular option will be the typical install.
- Typical Install
- Custom Install
- Complete Install

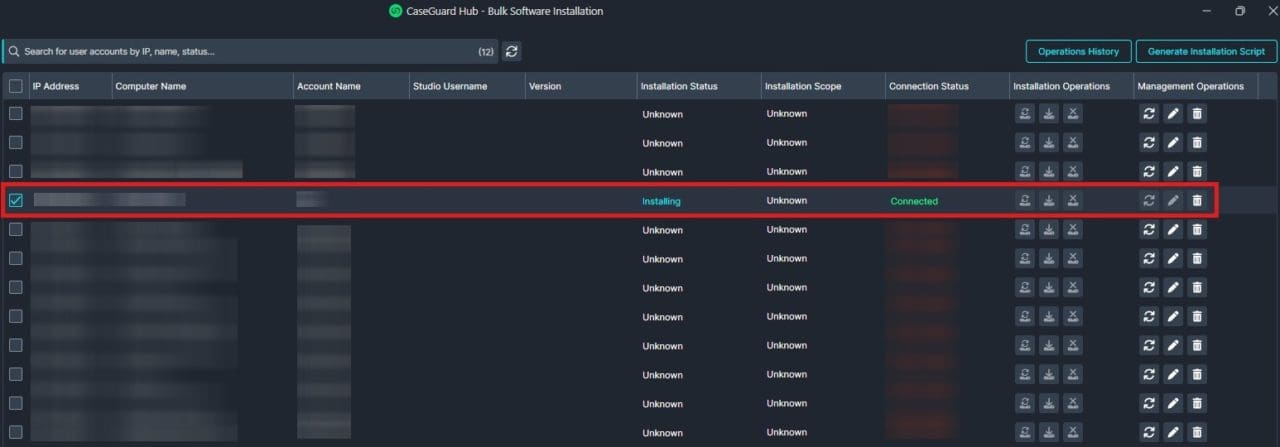

Now your bulk installation will start processing. It will bring you back to the main hub where you will be able to see the status of the bulk installation.

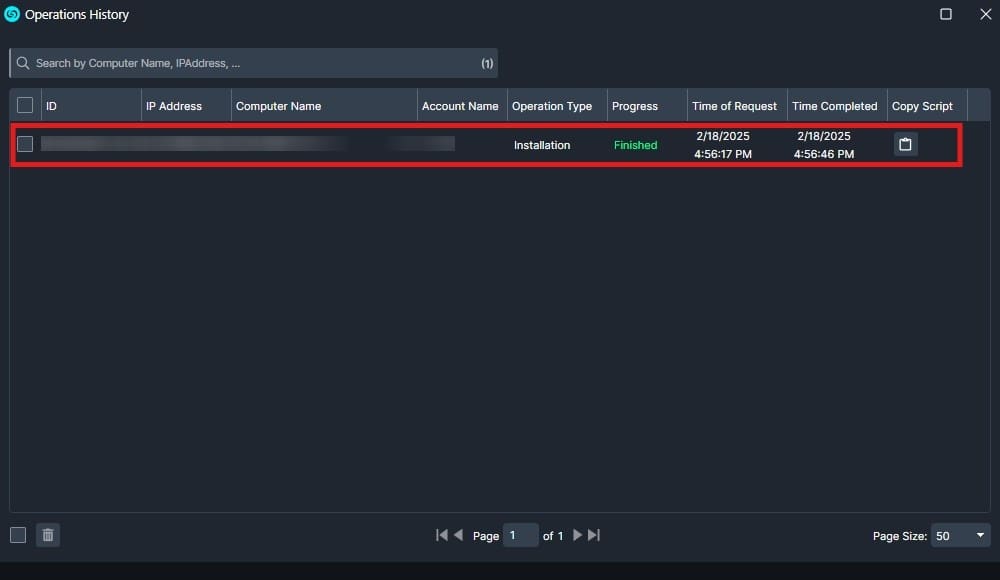

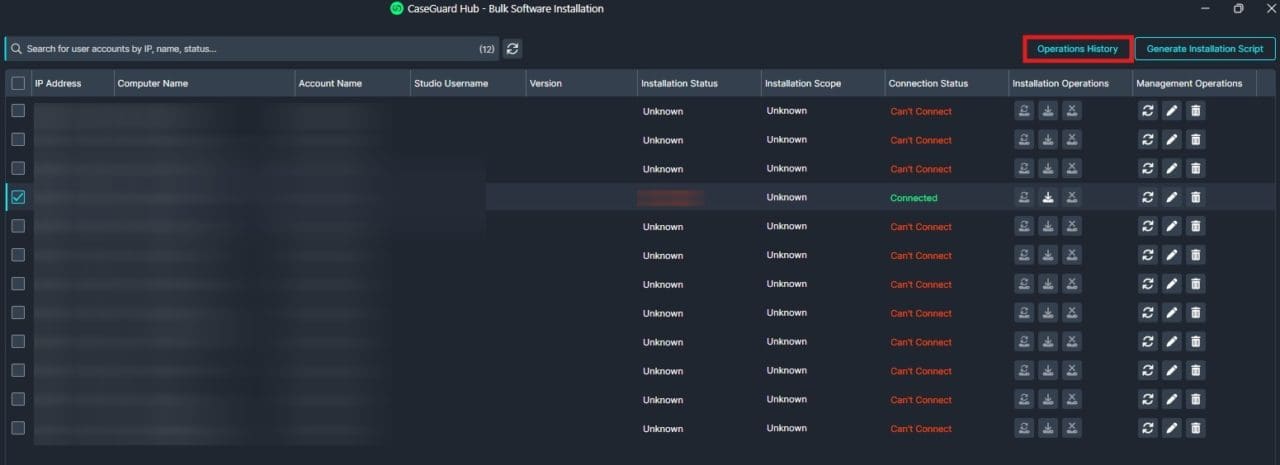

If you click the operations history button on the top right it will bring you to another window where you can check the status of your download.
The window will look like the screenshot below. Here you can check the operation type, progress, time of request, and the time completed.
Conclusion
Using CaseGuard Hub for bulk installations simplifies the process of deploying CaseGuard Studio across multiple machines in your organization. Instead of installing the software individually on each device, administrators can manage installations centrally, saving time and ensuring consistency across the network.
By following the steps outlined in this guide, administrators can quickly detect machines on the network, configure installation settings, and monitor the progress of deployments through the Hub’s operations history. If you encounter any issues during the process, the CaseGuard Support team is available to assist at [email protected].
